Product Overview

The JZR intelligent variable frequency constant pressure water supply equipment is a multifunctional water supply device. This equipment uses variable frequency speed regulation technology and special industrial control computer technology to perform closed-loop control of the pump units in the water supply system. According to the parameters of the instantaneous change value of the flow rate and the corresponding pressure value in the water supply system, after processing by the analog quantity module of the industrial control computer, the variable frequency speed regulator automatically adjusts the pump speed and controls the number of pump starts to maintain the set constant pressure in the water supply network and meet the energy-saving water supply requirements. For circulating water systems, the output of the circulating pump can also be controlled through parameters such as temperature to achieve energy saving. The JZR intelligent variable frequency constant pressure water supply equipment is different from other manufacturers in that a buffer tank is added in the design, realizing the most energy-saving configuration. The buffer tank maintains the system pressure for a certain period of time when the system usage is small or no water is used, so that all water supply pumps automatically shut down; when the water usage increases, it automatically starts. If there is no buffer tank in the design, the water pump must be used to maintain the system pressure when the system water usage is small or no water is used, consuming power. Due to the incompressibility of water, even if the pressure-retaining pump stop function is set, when a small amount of dripping occurs, the pressure reduction will be very large, and the water pump will also start immediately. The longer this condition is in a day, the more useless work is wasted, while the JZR intelligent variable frequency constant pressure water supply equipment allows you to waste no energy.

Application Range

● Domestic water supply for ordinary residential buildings, commercial and residential buildings, and residential communities.
● Domestic water supply for high-rise buildings, high-end hotels, etc.
● Domestic water supply for buildings such as comprehensive buildings, office buildings, and clubs.
● Various types of waterworks and water supply booster pump stations.
● Production and domestic water supply for industrial and mining enterprises, and process water with constant pressure supply.
● Hot water supply systems or hot water heating systems for residential communities, high-rise buildings, etc.
● Various types of circulating water and cooling water supply systems.
● Automatic control water supply systems for sewage treatment plants and drainage stations.
● Other fields of variable frequency control. Our company can design separately according to user requirements.

Equipment Composition

The JZR intelligent variable frequency constant pressure water supply equipment mainly consists of a variable frequency constant pressure control cabinet, water supply pump unit, remote pressure gauge, liquid level controller, various pipe fittings, valves, buffer tank, etc.

Performance Characteristics

● Uses domestic or imported well-known brand frequency converters, with multiple protection functions such as undervoltage protection, overvoltage protection, short-circuit protection, and stall prevention.
● Equipped with advanced control technology, the pressure is set as needed, and the pump speed is automatically adjusted according to the change in water consumption, realizing energy-saving water supply.
● The variable frequency constant pressure control cabinet controls each pump to operate at both variable frequency and power frequency. Multiple pumps are started in a circulating manner, with no impact on the pipeline network or power grid, extending the service life of the equipment.
● Fully automatic operation, no need for manual attendance. Multiple sets of pumps automatically supplement and reduce pumps according to changes in water consumption, and automatically exchange operation on a regular basis; when the water consumption is small or no water is used, the equipment will automatically shut down and maintain pressure, further saving energy, and automatically start when the water consumption increases.
● Running data can be displayed, the appearance is beautiful, the operation is convenient and flexible, and all running data can be changed through on-site debugging parameters.

● There is a water level control interface, which can control several water level signals, and has functions such as pump stop at ultra-low water level and alarm at ultra-high water level.
● The JZR intelligent variable frequency constant pressure water supply equipment is designed with a buffer tank, which not only has a buffering effect but also reduces and eliminates the impact of water hammer, thereby greatly extending the service life of the equipment.
● Uses a programmable controller, which has strong anti-interference ability, flexible control, and can easily add various functions.
● Has the function of displaying both the set pressure and the actual pressure.

Technical Parameters and Indicators

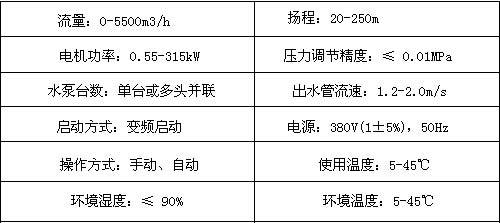

Technical Parameters and Indicators

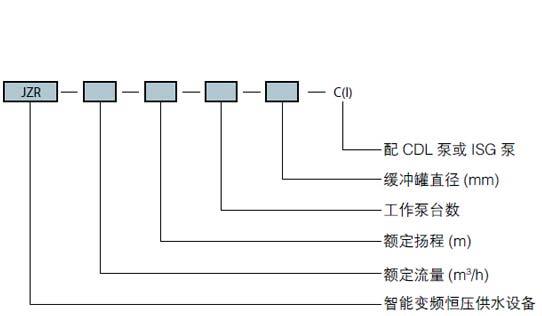

For example: JZR-12-45-2-600C means intelligent variable frequency constant pressure water supply equipment, rated flow rate 12m3/h, rated head 45m, equipped with 2 CDL type working pumps, and a buffer tank diameter of 600mm.

Equipment Selection Guide

The water supply capacity of the water pump in the JZR intelligent variable frequency constant pressure water supply equipment should meet the requirements of the maximum water consumption during peak water consumption and the water supply pressure at the most unfavorable point in the pipe network.
● According to the required flow rate and head.
● According to the required pump style.
● If there is no satisfactory model in the equipment selection parameter table, our company can design it for you.

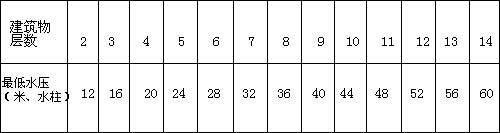

● The required water pressure can also be selected according to the following table:

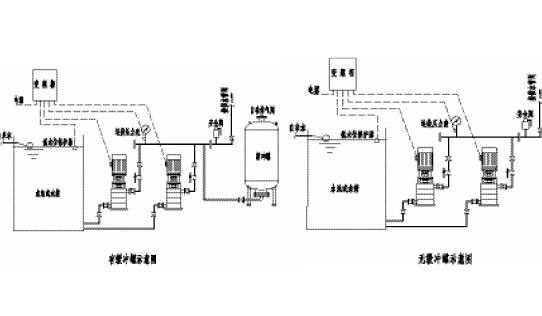

Schematic diagram of JZR intelligent variable frequency constant pressure water supply equipment

Description
● The water supply pump shown is a two-pump parallel type, sometimes multi-pump parallel or single-pump. For a single pump, select the pump according to the water supply design flow rate Q (m3/h), the single pump flow rate is Q (m3/h), and the head H (m) is determined according to the water pump flow rate and head curve; for multiple pumps, select the pump according to the design flow rate Q (m3/h), the pump group flow rate Q (m3/h), and the corresponding operating point head H (m)
It is determined according to the flow rate and head curve of multiple pumps in parallel, or the total flow rate is approximately 0.9 times the sum of the flow rates of all single pumps under the design head.
● The operating weight includes the channel steel base, water pump, buffer tank, weight of water in the equipment during operation, and accessories.
● The following pumps are for reference, and users can also choose other models of pumps.

Diagram and foundation diagram of JZR intelligent variable frequency constant pressure water supply equipment

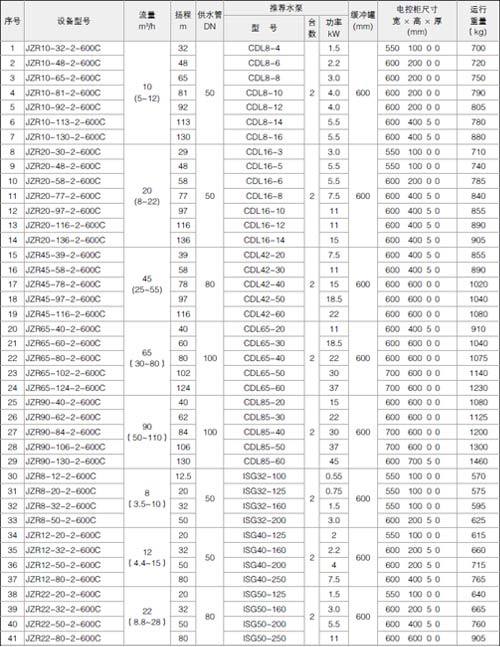

Selection parameter table of JZR intelligent variable frequency constant pressure water supply equipment
